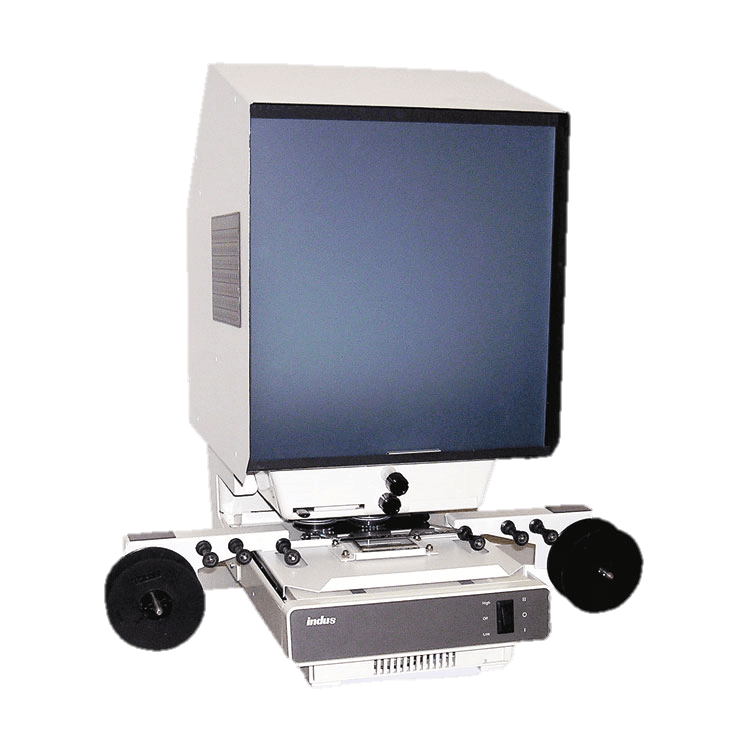

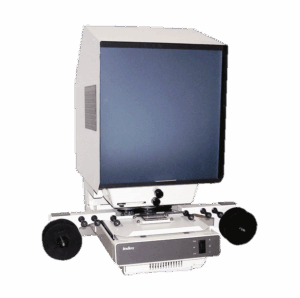

Manufacturer / Dealer: Indus
Model: 4601-11
 Excellent all-round reader with ability to view Source documents at full size and COM images at 3/4 size.Image rotation as standard. Optional dual lens version.
Huge range of optional factory fitted carriers to accommodate manual and motorised 16/35mm roll film, cartridges and C-clips plus fiche/jackets and aperture cards.
Handy pull-out electrical drawer for easy access to lamp.
Plastic and metal construction.
Optional carrying handle. Bottom glass only moves when changing film and/or moving backwards and forwards on roll film thereby not affecting the focus setting.
|
Formats of Microfilm Accepted (with appropriate reader)
A = GOOD – B = ACCEPTABLE – C = OCCASIONAL USE ONLY |
|
JACKET
|
FICHE
|
JUMBO
FICHE
|
AP
CARD
|
16MM
ROLL
|
M TYPE
CART
|
ANSI
CLIP
|
35MM
ROLL
|
35MM
CART
|
|
A
|
A
|
–
|
–
|
A
|
A
|
A
|
C
|
–
|
|
|
|
|
Facilities:
|
| LENSES |
:
|
24x, 32x, 36x,42x or 48x |
| IMAGE ROTATION |
:
|
Yes |
| DUAL LENS FACILITY |
:
|
Yes – optional |
| CARRIERS |
:
|
Jacket/Fiche carrier Optional:16/35mm manual roll film, 16/35mm motorised open spool roll film, 16/35mm motorised open spool, cartridge & C-clip, Universal fiche/jacket and 16/35mm open spool, Aperture card. |
|
| READ BLIPS |
:
|
No |
|
|
|
|
Logistics:
|
| DIMENSIONS |
:
|
298mm (11 1/4″)W x 406mm (16″)D x 578mm (22 1/4″)H – width includes roll film carrier. |
| WEIGHT |
:
|
12.7kg (28lbs) |
| SCREEN SIZE |
:
|
295mm (11 1/2″)W x 284mm (11″)H |
| SCREEN COLOUR |
:
|
Blue |
| ELECTRICAL REQUIREMENTS |
:
|
240v standard, 110v version also available. |
| LAMP |
:
|
LEPZ 13.8v, 50w |
| WARRANTY |
:
|
1 year limited |
|
|
|
|
Accessories:
|
| STANDARD |
:
|
– |
| OPTIONAL |
:
|
– |
|
|
Download the Brochure
